Cavitation is a silent but destructive phenomenon that can severely impact the performance and lifespan of vacuum pumps. Often overlooked during system design and operation, cavitation is critical to address because it not only degrades efficiency but also causes mechanical damage that can lead to costly repairs and unexpected downtime. Understanding what cavitation is, how it affects vacuum systems, and the steps needed to prevent it is essential for anyone involved in the maintenance and operation of vacuum equipment.

Why is Cavitation a Critical Issue?

Cavitation is a critical issue because it can lead to irreversible damage to the internal components of a vacuum pump. It compromises the system’s ability to maintain consistent vacuum levels and can reduce operational reliability. Over time, cavitation can erode impellers, wear down seals, generate excessive noise and vibration, and ultimately cause pump failure. For industries that rely on uninterrupted vacuum operations—such as pharmaceuticals, food processing, and chemical manufacturing—cavitation-related downtime can result in significant financial losses and process inefficiencies.

What Is Cavitation in Vacuum Pumps?

Cavitation in vacuum pumps occurs when the pressure inside the pump drops below the vapor pressure of the liquid being pumped, causing the liquid to vaporize into bubbles. These vapor bubbles travel with the fluid and eventually collapse violently when they encounter higher-pressure zones. The collapse of these bubbles produces intense shockwaves, which can pit and erode internal metal surfaces.

There are two primary types of cavitation in vacuum systems:

1. Suction Cavitation: Happens when the pump’s inlet pressure is too low due to restricted flow or a high vacuum level, leading to the formation of vapor bubbles near the suction side.
2. Discharge Cavitation: Occurs when there is high resistance on the discharge side of the pump, causing low-pressure zones to form internally, which also triggers cavitation.

Cavitation is most common in liquid ring vacuum pumps, rotary vane pumps, and other systems that handle condensable vapors or operate near boiling points.

Effects of Cavitation on Vacuum Systems

The effects of cavitation in vacuum systems can be both immediate and cumulative. Some of the most common impacts include:

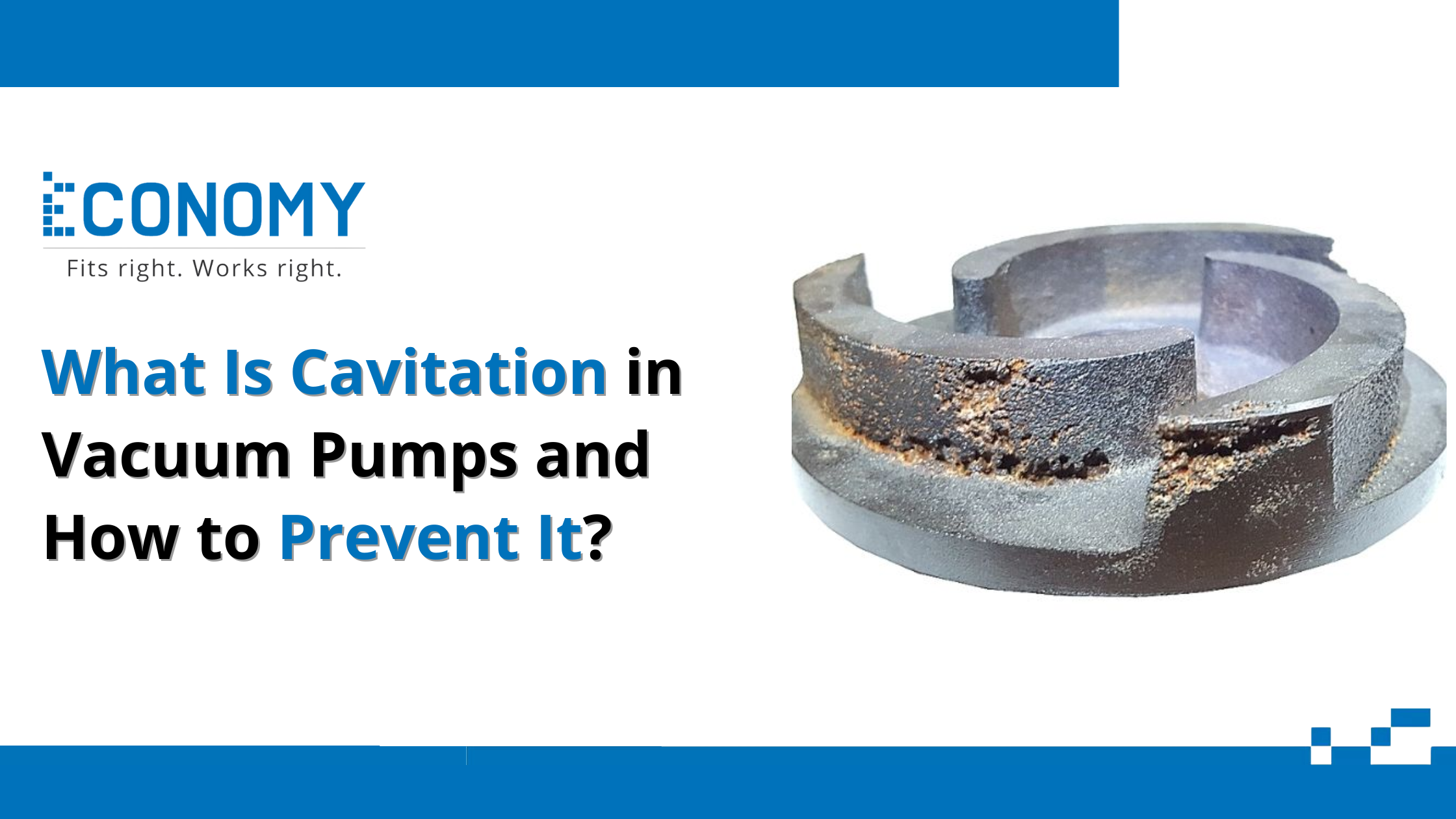

• Surface Erosion: The implosion of vapor bubbles damages metal surfaces, leading to pitting and material loss.
• Noise and Vibration: Cavitation often produces a distinctive “gravel” or “crackling” sound, along with increased vibration that can affect pump alignment and other components.
• Seal and Bearing Wear: Repeated cavitation stresses mechanical seals and bearings, shortening their service life.
• Reduced Efficiency: As damage accumulates, the vacuum pump loses efficiency, consumes more energy, and may fail to maintain the required vacuum level.
• System Downtime: Unscheduled maintenance due to cavitation damage leads to operational delays and increased maintenance costs.

How to Prevent Cavitation in Vacuum Pumps

Preventing cavitation requires a combination of proper pump selection, system design, and operational practices:

1. Maintain Proper Suction Conditions: Ensure that the inlet pressure is above the vapor pressure of the liquid. This might involve increasing the Net Positive Suction Head Available (NPSHa) or reducing the operating temperature.
2. Avoid Inlet Restrictions: Use adequately sized piping and minimize bends, valves, or filters that restrict flow to the pump’s inlet.
3. Control Process Temperature: Avoid operating at temperatures close to the boiling point of the process liquid, especially in closed-loop systems or when handling volatile fluids.
4. Use Gas Ballast or Condensate Traps: For pumps handling condensable vapors, installing gas ballast valves or condensate separators helps prevent vapor buildup and cavitation.
5. Regular Maintenance: Periodically check for wear, contamination, or alignment issues that may affect pressure or flow within the pump.
6. Install Monitoring Systems: Vibration sensors, pressure gauges, and temperature monitors can help detect early signs of cavitation and prompt timely intervention.

FAQs

Q1: Can cavitation occur in dry vacuum pumps?
A: While cavitation is most common in liquid-handling pumps, dry pumps can experience similar damage when exposed to condensable vapors or process fluctuations that introduce liquid slugs.

Q2: What does cavitation sound like?
A: Cavitation often sounds like gravel or marbles rattling inside the pump. It may also produce sharp clicking or popping noises.

Q3: Is cavitation reversible?
A: The damage caused by cavitation is not reversible. Once surfaces are eroded or components fail, they must be repaired or replaced.

Q4: How do I know if my pump is cavitating?
A: Common signs include unusual noise, increased vibration, drop in performance, visible wear on components, and sudden loss of vacuum.

Preventing cavitation is far easier and more cost-effective than repairing the damage it causes. By understanding the causes and taking proactive steps, vacuum pump operators can ensure smoother performance, longer equipment life, and fewer operational disruptions.
